Aqua Whisper MINI

Aqua Whisper Pro - For the hands-on boater

AQUA WHISPER MINI Features

Sea Recovery has added a new modular configuration to the Aqua Whisper Mini series of watermakers. The new Aqua Whisper Mini modular is engineered to fit anywhere, in the tightest of spaces, and provides easy access to main components. The Aqua Mini series of watermakers is engineered to fit anywhere and gives you the choice to produce more fresh water while keeping the same small footprint. Measuring at about 2 – 3 cubic feet, sail and small power boaters have the opportunity and the convenience of owning a Sea Recovery watermaker without the space restrictions. Producing from 7, 15, 23 or 31 gallons of fresh water per hour, the Aqua Whisper Mini series of watermakers are the perfect seaworthy companion for the solo cruiser.

KEY FEATURES
  • Smallest line of watermakers
  • New modular design – allows flexible installation options
  • Production of 170, 350, 550, or 750 gallons/day
  • DC power available for the Aqua Whisper 170
  • Low AC power consumption
SEMI-AUTOMATIC FUNCTIONS
  • Touch pad control panel with simple touch operation.
  • 6 illuminated LED status indication lamps for system operation.
  • Weekly automatic fresh water flush timing (optional) and sequential starting of electric motors with manual override.
METERS / MONITORS
  • Hour Meter for keeping accurate ship’s logs & schedule preventative maintenance.
  • New solid state electronic flow meters for visual monitoring of the product water and feed water flow used to calculate production rates of the system.
  • Exclusive Solid Salinity Meter shows actual product water quality, an essential tool for product water monitoring.
  • Product water quality is displayed in bar graph format with 10 additional LEDs.
PUMPS
  • Exclusive high efficiency booster pump for extended pre-filter life.
  • Quiet high pressure pump runs smooth and is free of pulsations.
ACCESSORIES
  • Push button remote control available
  • A Soft Motor Starter is available for single phase AC powered systems that reduces start up power by 60%.
  • Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
  • Optional – pH Neutralizer, and Automatic Fresh Water Flush.
SAFETY
  • A failsafe Product Water Diversion Valve
  • Unique Low Voltage Control Circuitry, shielded terminals, and covered high voltage components for end-user safety.
NOISE REDUCTION FEATURES
  • The quiet stainless steel high pressure pump is specifically designed for sea water reverse osmosis applications. The unique design of this high pressure pump reduces noise level to a negligent hum.
  • Low noise manifold design
  • Vibration isolation mounts included.
MATERIALS
  • Dedicated heavy duty Magnetic Latching Relays for each motor integrated in the system.
  • 316 Stainless Steel Pressure Transducers for accurate measurement of system functions.
  • New High rejection / high yield membrane element that produces higher quality product water in a smaller space.
  • Fiberglass Reinforced High Pressure Membrane Vessel is stronger and eliminates corrosion.
SAFETY
  • A failsafe Product Water Diversion Valve
  • Unique Low Voltage Control Circuitry, shielded terminals, and covered high voltage components for end-user safety.
SERVICE AND MAINTENANCE
  • Fault LED indication is provided for easy diagnosis of required maintenance.
  • The Aqua Whisper Mini is shipped from the factory ready to install and function.
  • There are no optional items required, and a complete installation kit is also included along with a comprehensive and detailed Owner’s Operation & Maintenance Manual.
  • Worldwide Service and Sales Network for immediate attention regardless of location
  • Technical service dedicated to excellent system performance
Specifications
Performance Rated Performance / Product Water Produced: ±15% at 820 PSI / 57 BAR, 77°F / 25°C & 35,000 PPM TDS typical sea water
Salt Rejection (Chloride Ion) Minimum 99.2%, Average 99.4%
Product Water Temperature Ambient to feed water temperature
Pressure Adjustment User Adjusted
Salinity Monitoring Automatic electronic monitoring. Temperature compensated with digital continuous readout. Fail-safe design with continuous TDS readout in ppm.
Salinity Range Designed for seawater use up to 50,000 PPM TDS (NaCl) (typical seawater salinity is 35,000 ppm)
Temperature Range Max. 122°F / 50°C, Min. 33°F / 0.5°C
System Feed Water Flow: 4.5 gpm / 17 lpm (depending on system)
Reverse Osmosis Membrane Selected High Rejection/High Yield aromatic tri-polyamid, thin film composite, spiral wound, single pass, high rejection membrane element
Chlorine Tolerance 0.1 PPM
pH Range 3–11 (typical seawater pH is 8)
System Pressure Feed Water: Maximum 35 psi / 2.41 bar / 2.46 Kg/cm²
System Operation Seawater nominal 820 psi / 56.5 bar / 57.66 Kg/cm²
Weight Model Number Mini Compact Mini Modular
AM 170 70 lbs / 32 Kg 70 lbs / 32 Kg 70 lbs / 32 Kg
AM 350 89 lbs / 40.4 Kg 89 lbs / 40.4 Kg 89 lbs / 40.4 Kg
AM 550 128 lbs / 57 Kg 128 lbs / 57 Kg 128 lbs / 57 Kg
AM 750 130 lbs / 59 Kg 130 lbs / 59 Kg 130 lbs / 59 Kg
Electrical Requirements
(NOA = Normal Operating Amps; SUC = Start Up Current; HP = Horse Power)
Model Phase Pump Motor Hz Voltage HP NOA SUC
Aqua Whisper Mini 170 N/A HP N/A 12 / 24 .33 29 / 14 90 / 45
Single HP 50 / 60 110 / 230 .33 6 / 3 26 / 13
Aqua Whisper Mini 350 Single HP 50 / 60 110 / 230 1 13 / 6.5 52 / 26
Aqua Whisper Mini 550/750 Single HP 50 / 60 110 / 220 2.5 26 / 13 93 / 47
Single Booster 50 / 60 110 / 220 0.5 7 / 3.5 28 / 14
Circuit Breaker Size
Model Operating AC Voltage Phase Recommended Circuit Breaker
Aqua Whisper Mini 170 12 / 24 VDC - 40 Ampere / 20 Ampere
110 / 230 (AC) Single 12 Ampere / 10 Ampere
Aqua Whisper Mini 350 110 / 230 Single 20 Ampere / 15 Ampere
Aqua Whisper Mini 550 110 Single 40 Ampere
Aqua Whisper Mini 550 220 Single 20 Ampere

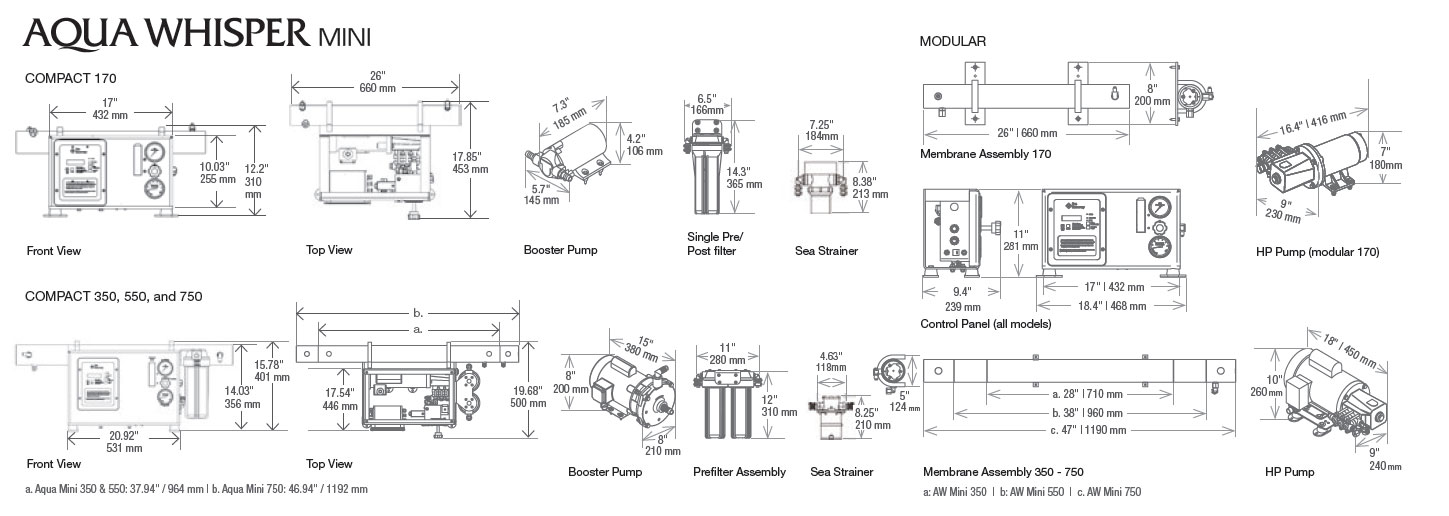

Dimensions

Click on image to download image.

Accessories
Remote Control

The new state-of-the-art Touch Pad Remote Control Unit allows for remote operation and supervision of your system.

Spare Parts Reference # B611000004

Soft Motor Start

The new SRC Soft Motor Starter (SMS) reduces start-up amps by 45%. This allows operation from smaller generators.

Spare Parts Reference #

  • B596800014 (SOFT START ASSY 220/330V)
  • B596800015 (SOFT START ASSY 110/115V)
Fresh Water Flush

The fresh water flush greatly prolongs the life of the membranes by rinsing them with fresh water at the touch of a button. Automatically flushes your system every seven days.

  • Spare Parts Reference #
  • B598000009 FRESH WATER FLUSH 10″ HOUSING
UV Sterilizer

The Ultraviolet Sterilizer processes up to 2 gallons/minute. The result is a 99.8% sterilization of all micro-organisms, including reproducing bacteria and viruses. Ultraviolet replacement U.V. lamps are also available. Please specify voltage when ordering.

Spare Parts Reference # B5262000CV

Plankton Filter

The plankton filter traps suspended solids larger than 100 micron, thus providing additional protection for the system’s pre-filters, which ultimately extend pre-filter element life (Dual design available).

Spare Parts Reference # B008800001

pH Neutralizer

The Sea Recovery pH Neutralizing Filter provides pH neutralization of the reverse osmosis system product water.

Spare Parts Reference # B561080001

Consumables
Replacement Filters

TWhether for the pre-filtration stage or post treatment stage, the Sea Recovery R.O. Filter Elements are an essential part in proper system performance.

Membrane Element Storage

These chemicals inhibit bacterial growth while maintaining the high flux and salt rejection of the R.O. Membrane Element.

Membrane Element Cleaning Compound #1 (SRC MCC-1) is an alkaline cleaner designed to clean biological fouling and slight oil fouling from the R.O. membrane element.

Membrane Element Cleaning Compound #2 (SRC MCC-2) is an acid cleaner designed to clean calcium carbonate and other mineral deposits from the R.O. membrane element.

Membrane Element Cleaning Compound #3 (SRC MCC-3) is used for iron fouling. If the system’s R.O. membrane element is fouled with rust from iron piping, then SRC CC-3 may be used for effective removal of light or moderate rust fouling.

Cleaning Compounds
SPARE PARTS REFERENCE #

B645800001 – MCC-1 ALKALINE CLEANER

B645800002 – MCC-2 ACID CLEANER

B645800004 – MCC-3 RUST REMOVER

B646800001 – MCC – CLEANING KIT (Includes MCC-1 & MCC-2)
