Aqua Matic Whisper Pro
The Aqua Whisper Pro watermaker is suited for charter, offshore fishing, and ocean cruising. It's traditional manual functions and touch-pad control panel allows simple operation and digital + analogue instrumentation for redundancy.
The Aqua Whisper Pro's high-pressure pump is engineered to be quieter than conventional high-pressure pumps, and operates for 2,500 hours before any maintenance is required.
This Compact Unit is available in a variety of voltages and production rates. Please see below for compact unit dimensions and production flow rates.
Easy to use, easy to upgrade:
The Aqua Whisper Pro’s semi-automatic operation requires only one pressure adjustment to varying feed water conditions. User-friendly touch pad control panel is simple to use and easy to understand. Multiple product water production capabilities from 450 gallons / 1,703 litres to 1800 gallons / 6,814 litres per day (19gal / 71lit - 75gal / 284lit per hour). All Aqua Whisper Pro models are “in-field” upgradable to higher production capacities.
Manage critical functions from any location:
The LCD touch screen acts as your watermaker’s first mate, and will assist your efforts to maintain, guide, and configure the Aqua Whisper Pro anyway you wish. Vital system functions and gauges are reported through the display and remote, and can be accessed at any time. The Aqua Whisper Pro gives operators maximum control with the ability to do more than ever before.
Available in a variety of sizes and voltages:
| AMI # | Parker description |
|---|---|
| 4230200 | AWPRO CPT 450-1GPD, 110V, 1Phase, 50/60Hz |
| 4230202 | AWPRO CPT 450-1GPD, 220V, 1Phase, 50/60Hz |
| 4230212 | AWPRO CPT 700-1GPD, 110V, 1Phase, 50/60Hz |
| 4230214 | AWPRO CPT 700-1GPD, 220V, 1Phase, 50/60Hz |
| 4230224 | AWPRO CPT 900-1GPD, 110V, 1Phase, 50/60Hz |
| 4230226 | AWPRO CPT 900-1GPD, 220V, 1Phase, 50/60Hz |
| 4230236 | AWPRO CPT 900-2GPD, 110V, 1Phase, 50/60Hz |
| 4230238 | AWPRO CPT 900-2GPD, 220V, 1Phase, 50/60Hz |
| 4230248 | AWPRO CPT 1400-2GPD, 110V, 1Phase, 50/60Hz |
| 4230250 | AWPRO CPT 1400-2GPD, 220V, 1Phase, 50/60Hz |
| 4230260 | AWPRO CPT 1800-2GPD, 110V, 1Phase, 50/60Hz |
| 4230262 | AWPRO CPT 1800-2GPD, 220V, 1Phase, 50/60Hz |
Specifications
| PRODUCTION & WEIGHT | Model # | Production / Hr. | Production / 24 hrs. | AW PRO compact* | AW PRO modular* |
|---|---|---|---|---|---|
| 450-1 | 19 Gal / 71 L | 450 Gal / 1,703 L | 157 lbs / 71 kg | 157 lbs / 71 kg | |
| 700-1 | 29 Gal / 110 L | 700 Gal / 2,650 L | 160 lbs / 73 kg | 160 lbs / 73 kg | |
| 900-1 | 38 Gal / 142 L | 900 Gal / 3,407 L | 162 lbs / 73 kg | 162 lbs / 73 kg | |
| 900-2 | 38 Gal / 142 L | 900 Gal / 3,407 L | 169 lbs / 77 kg | 169 lbs / 77 kg | |
| 1400-2 | 58 Gal / 221 L | 1,400 Gal / 5,300 L | 175 lbs / 79 kg | 175 lbs / 79 kg | |
| 1800-2 | 58 Gal / 221 L | 1,800 Gal / 6,814 L | 180 lbs / 82 kg | 180 lbs / 82 kg |
| Phase | Pump Motor | Voltage VAC | Hz | Normal Operating Amps | Start Up Current |
|---|---|---|---|---|---|
| Single | High Pressure / Booster | 110-115 / 220-230 | 50 / 60 | 110 / 220 30 / 15 |
110 / 220 100 / 50 |
| Three | High Pressure / Booster | 220-230 / 380-460 | 50 / 60 | 220 / 380 - 440 11 / 5.5 |
220 / 380 - 460 30 / 15 |
| Circuit Breaker Size | Operating AC Voltage | Phase | Recommended Circuit Breaker |
|---|---|---|---|
| Plunger Pump | 110-115 / 220-230 | Single | 40 Ampere / 20 Ampere |
| 220 / 380 / 460 | Three | 15 Ampere / 10 Ampere / 10 Ampere |

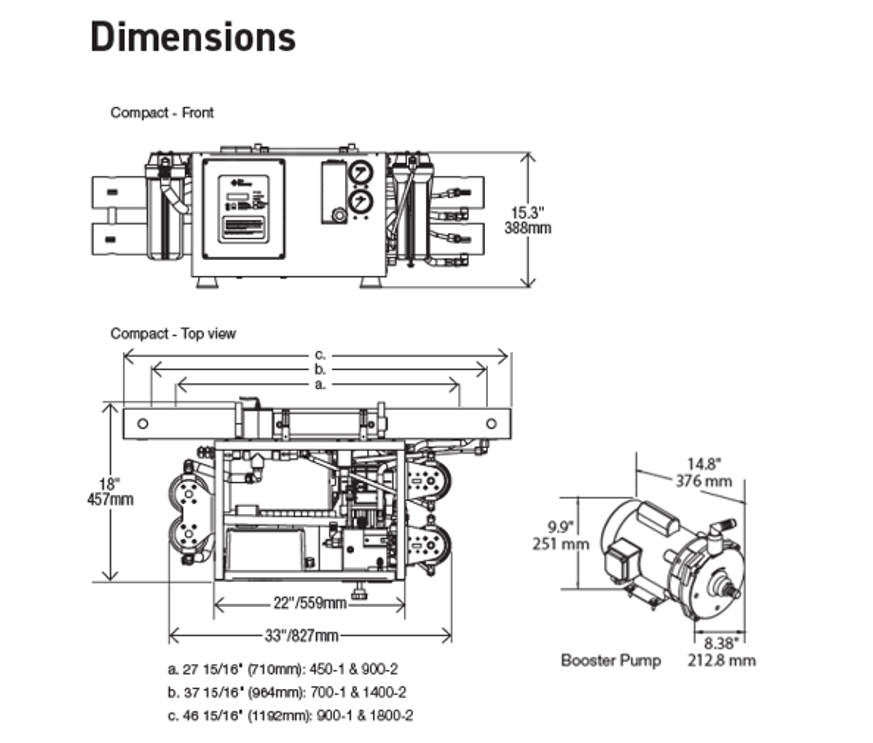

Dimensions
Click on image to download image.
